$211.25

• Guaranteed secure & safe checkout.



Description

The Zebra 800077-749 Color Ribbon is a high-capacity, genuine OEM consumable engineered specifically for heavy-duty, dual-sided card production. This premium six-panel cartridge combines Yellow, Magenta, and Cyan dye-sublimation panels (YMC) to create a full spectrum of photographic images on the front side of the card, an integrated high-density resin Black (K) panel for sharp front text, and a clear protective Overlay (O). Following the overlay, an additional secondary resin Black (K) panel is dedicated exclusively to printing monochrome elements on the back side of the card. Utilizing intelligent media technology, this ribbon ensures automatic detection and optimized imaging configuration for crisp credentials.

Key Benefits

• Optimized Dual-Sided Layout: Engineered specifically for automated double-sided badging, printing full-color images on the front while conserving colored panels by using a dedicated resin black panel for text, fine print, and barcodes on the back.
• Long-Lasting Card Defense: Automatically applies a thin, clear protective overlay across the entire face of the card to shield credentials from moisture, handling abrasions, and UV fading.
• High-Yield Workflow Continuity: Yields an impressive 750 complete dual-sided cards per roll, minimizing the frequency of cartridge roll changes to maximize ongoing system uptime and administrative productivity.
• Razor-Sharp Tracking and Text: Dual premium black resin panels ensure crisp, deeply contrasted alphanumeric text, serial numbers, and highly scannable 1D or 2D barcodes.
• Intelligent Media Detection: Features an embedded smart-chip design that automatically calibrates printer configuration settings, handles ribbon detection, and triggers low-supply warnings.
• Extended Printhead Longevity: Designed with a specialized back-coating that minimizes friction and static electricity, actively preventing premature thermal printhead wear.

Technical Specifications

• Ribbon Type: Direct-to-card dye-sublimation / resin thermal transfer color ribbon
• Color Panel Configuration: YMCKOK (Yellow, Magenta, Cyan, Black, Overlay, Black)
• SKU / Part Number: 800077-749
• Print Yield Capacity: 750 complete dual-sided cards per roll
• Print Side Capability: Dual-sided (Full-color front with clear protective overlay, monochrome black back)
• Printer Compatibility: Certified exclusively for use with the Zebra ZXP Series 7 (ZXP7) ID Card Printers.

In the Box

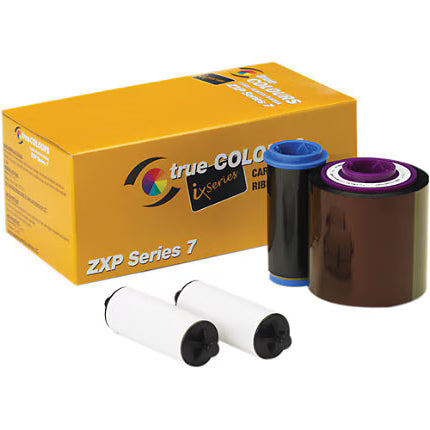

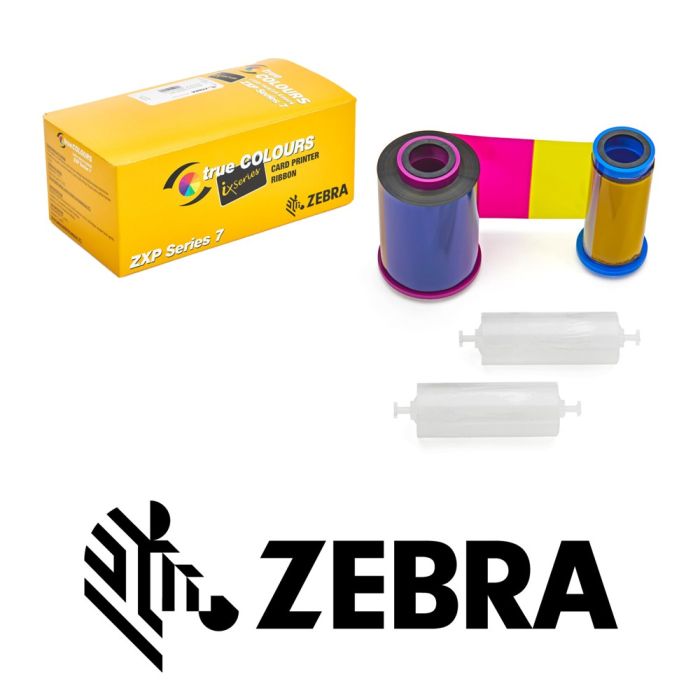

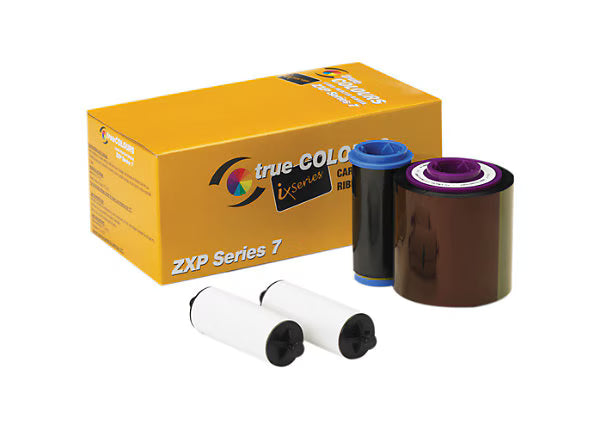

• Zebra 800077-749 YMCKOK Ribbon Roll
• Integrated Printer Cleaning Roller
