Description

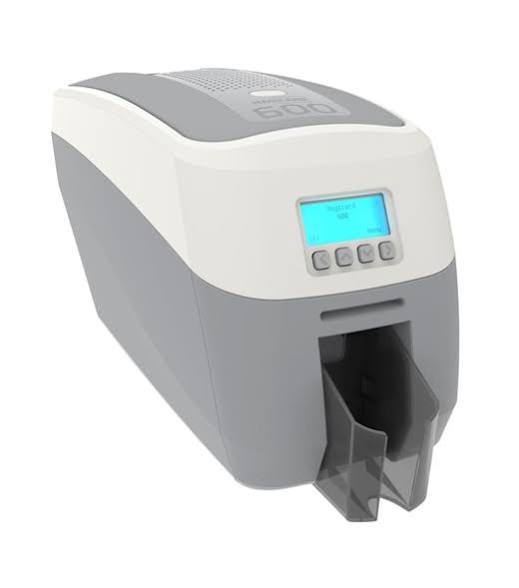

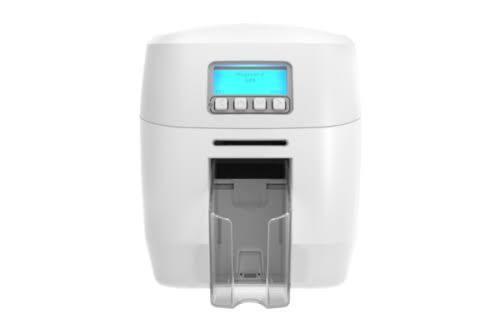

Designed for organizations requiring advanced network deployment, high-yield production, and enhanced physical data protection, this dual-sided direct-to-card system features integrated Smart Card Encoding capabilities alongside standard IEEE 802.11b/g/n Wireless LAN infrastructure. This specialized configuration allows technical teams to execute automatic dual-sided visual printing and program multi-tier contact or contactless smart chip architectures within a single automated production cycle. Housed in a durable chassis, it integrates into corporate networks via built-in Wi-Fi, Fast Ethernet, and USB Host interfaces to satisfy strict administrative security and data privacy mandates.

Executive & Technical Justifications

• Smart Card Infrastructure Integration: Factory-configured with an onboard smart card programmer, allowing physical security teams to write secure encryption keys to contact and contactless smart chips (such as MIFARE, DESFire, or iClass layouts) simultaneously with visual production.
• Automatic Duplex Production Efficiency: Eliminates manual physical labor by utilizing an internal mechanical card-flipper module that simultaneously prints rich color graphics on the card face and secondary regulatory elements, terms, or tracking barcodes on the reverse side.
• Firmware-Level Data Privacy Compliance: Outfitted with specialized Digital Shredding™ technology. Immediately following a print completion, the onboard firmware fragments the network layout file and data packets across the kernel memory, rendering sensitive user records permanently irrecoverable.
• Exquisite Font and Micro-Text Precision: Operates at an advanced 600 x 300 dpi resolution (resin only), allowing administrative teams to include perfectly legible micro-text layers and small font sizes for enhanced credential compliance.
• Consumable Cost Mitigation: Features Magicard's proprietary HoloKote® visual security system. It applies an anti-counterfeiting holographic watermark directly within the standard clear overlay panel, protecting against cloning without forcing your department to purchase expensive holographic laminates.
• Flexible Wired & Wireless Infrastructure: Comes standard with an integrated Wi-Fi USB adapter supporting secure WPA and WPA2 network encryption protocols up to 300Mbps for effortless wire-free office deployment.

Technical Specifications

• Print Engine Technology: Direct-to-card dye sublimation, resin thermal transfer, and rewritable media support
• Native Resolution: 300 x 300 dpi continuous tone; up to 600 x 300 dpi enhanced resolution for resin text layers
• Print Capability: Automatic Double-Sided (Duplex) and single-sided edge-to-edge visual printing
• Production Output Speed: Outputs up to 190 full-color cards per hour or up to 720 high-speed monochrome cards per hour
• Data Encoding Infrastructure: Built-in Smart Card Encoder (Contact and Contactless Smart Card architectures)
• Media Handling Hoppers: 100-card automated input hopper; 70-card capacity output stacker tray
• Accepted Media Formats: Standard ISO CR-80 PVC / Composite card stock (accommodates thicknesses from 20 mil to 40 mil / 0.51mm to 1.27mm)
• Wired & Wireless Interfaces: High-Speed USB 2.0, 10/100 Ethernet (Fast Ethernet), 1 x USB Host, and Wireless LAN (IEEE 802.11b/g/n) via a supplied adapter
• Driver Framework Support: Fully certified for Microsoft Windows PC (including Windows 7/8/10/11), Apple macOS, and Linux operational structures
• Manufacturer Hardware Protection: Backed by a 3-year manufacturer limited warranty with comprehensive printhead and loaner coverage
• SKU / Model Identifiers: SRX3652-5023/2 (Magicard 3652-5023/2 / Magicard 600 Duo Smart)

What's In The Box?

• Magicard 600 Duo Dual-Sided ID Card Printer (with built-in Smart Card Encoder)
• Mini Wi-Fi USB Adapter Dongle
• 100-Card Capacity Input Hopper & 70-Card Capacity Output Stacker
• High-Speed USB 2.0 Interface Cable
• External Power Supply Unit and Power Cord
• Quick-Start Operational Setup and Driver Installation Documentation Guide

Certified Genuine Magicard Supplies & Accessories

Maintain factory certification parameters and protect your system's printhead coverage by deploying only authorized manufacturer consumables:

• MB200YMCKO: Full-Color YMCKO 5-Panel Ribbon Cartridge (200 prints per roll)
• MB300YMCKO: High-Capacity Full-Color YMCKO 5-Panel Ribbon Cartridge (300 prints per roll)
• MB250YMCKOK: Dual-Sided Full-Color Front / Monochrome Black Back Ribbon Cartridge (250 prints per roll)
• MA1000K-BLACK: High-Contrast Monochrome Black Resin Ribbon (1,000 prints per roll)
• 3633-0053: Complete Printer Path Cleaning Kit (Includes 10 pre-saturated cleaning cards and 1 printhead cleaning pen)
