$2,053.79

• Guaranteed secure & safe checkout.



Description

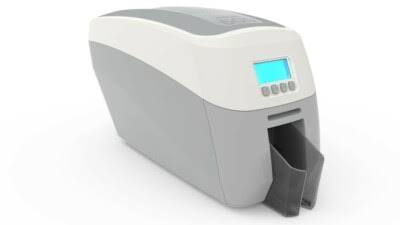

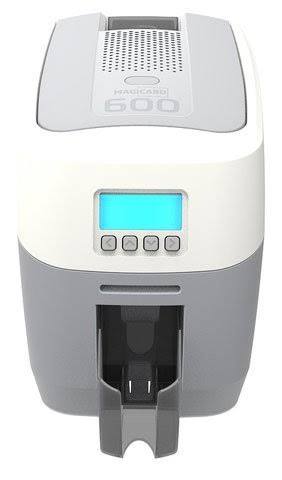

The Magicard 600 Duo Dual-Sided ID Printer with Integrated Magnetic Stripe Encoding is an enterprise-grade card issuance system engineered to deliver high-volume, secure corporate credentials and campus access passes.

Designed for organizations requiring advanced network deployment, high-yield production, and enhanced physical data protection, this dual-sided direct-to-card system features built-in automatic duplex printing and a factory-integrated ISO 7811 Magnetic Stripe Encoder. This specialized configuration allows technical teams to execute automatic dual-sided visual printing and program tracking data within a single automated production cycle. Housed in a durable chassis, it integrates seamlessly into corporate network environments via built-in Wireless LAN, Fast Ethernet, and USB Host interfaces to satisfy strict administrative security and data privacy mandates.

Executive & Technical Justifications

• Integrated Magnetic Swipe Encoding: Factory-configured with an onboard magnetic stripe encoder, allowing physical security teams to write secure access credentials to HiCo and LoCo tracking stripes simultaneously with visual production.
• Automatic Duplex Production Efficiency: Eliminates manual physical labor by utilizing an internal mechanical card-flipper module that simultaneously prints rich color graphics on the card face and secondary regulatory elements, terms, or tracking barcodes on the reverse side.
• Firmware-Level Data Privacy Compliance: Outfitted with specialized Digital Shredding™ technology. Immediately following a print completion, the onboard firmware fragments the network layout file and data packets across the kernel memory, rendering sensitive user records permanently irrecoverable.
• Exquisite Font and Micro-Text Precision: Operates at an advanced 600 x 300 dpi resolution (resin only), allowing administrative teams to include perfectly legible micro-text layers and small font sizes (≥5 point) for enhanced credential compliance.
• Consumable Cost Mitigation: Features Magicard's proprietary HoloKote® visual security system. It applies an anti-counterfeiting holographic watermark directly within the standard clear overlay panel, protecting against cloning without forcing your department to purchase expensive holographic laminates.
• Flexible Wired & Wireless Infrastructure: Comes standard with an integrated Wi-Fi USB adapter supporting secure WPA and WPA2 network encryption protocols up to 300Mbps for effortless wire-free office deployment.

Technical Specifications

• Print Engine Technology: Direct-to-card dye sublimation, resin thermal transfer, and rewritable media support
• Native Resolution: 300 x 300 dpi continuous tone; up to 600 x 300 dpi enhanced resolution for resin text layers
• Print Capability: Automatic Double-Sided (Duplex) and single-sided edge-to-edge visual printing
• Production Output Speed: Outputs up to 190 full-color dual-sided cards per hour or up to 720 high-speed monochrome cards per hour
• Data Encoding Infrastructure: Integrated ISO 7811 Magnetic Stripe Encoder
• Media Handling Hoppers: 100-card automated input hopper; 70-card capacity output stacker tray
• Accepted Media Formats: Standard ISO CR-80 and CR-79 PVC / Composite card stock (accommodates thicknesses from 20 mil to 40 mil)
• Wired & Wireless Interfaces: High-Speed USB 2.0, 10/100 Ethernet (Fast Ethernet), 1 x USB Host, and Wireless LAN (IEEE 802.11b/g/n) via a supplied adapter
• Driver Framework Support: Fully certified for Microsoft Windows PC and Apple macOS operational structures
• Manufacturer Hardware Protection: Backed by a 3-year manufacturer limited warranty with comprehensive printhead safety coverage
• SKU / Model Identifiers: SRX3652-5022/2 (Magicard 3652-5022/2 / Magicard 600 Duo Mag)

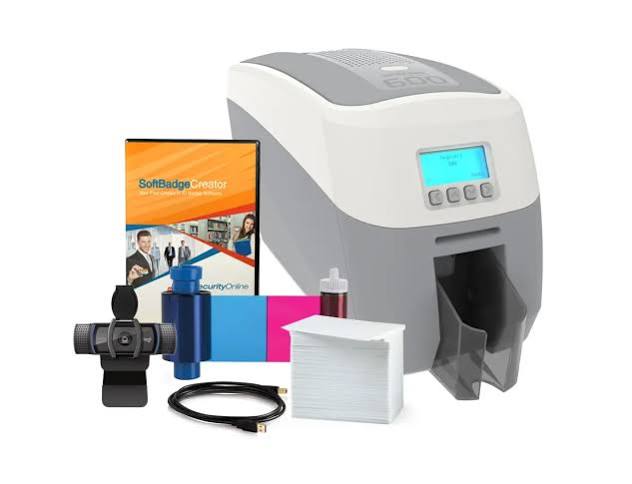

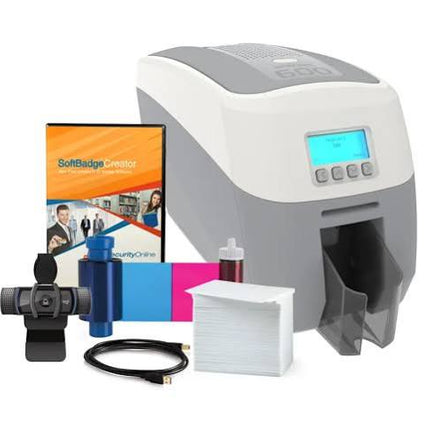

What's In The Box?

• Magicard 600 Duo Dual-Sided ID Card Printer (with built-in Magnetic Stripe Encoder)
• Mini Wi-Fi USB Adapter Dongle
• 100-Card Capacity Input Hopper & 70-Card Capacity Output Stacker
• High-Speed USB 2.0 Interface Cable
• External Power Supply Unit and Power Cord
• Quick-Start Operational Setup and Driver Installation Documentation Guide

Certified Genuine Magicard Supplies & Accessories

Maintain factory certification parameters and protect your system's printhead coverage by deploying only authorized manufacturer consumables:

• MB200YMCKO: Full-Color YMCKO 5-Panel Ribbon Cartridge (200 prints per roll)
• MB300YMCKO: High-Capacity Full-Color YMCKO 5-Panel Ribbon Cartridge (300 prints per roll)
• MB250YMCKOK: Dual-Sided Full-Color Front / Monochrome Black Back Ribbon Cartridge (250 prints per roll)
• MA1000K-BLACK: High-Contrast Monochrome Black Resin Ribbon (1,000 prints per roll)
• 3633-0053: Complete Printer Path Cleaning Kit (Includes 10 pre-saturated cleaning cards and 1 printhead cleaning pen)
