Description

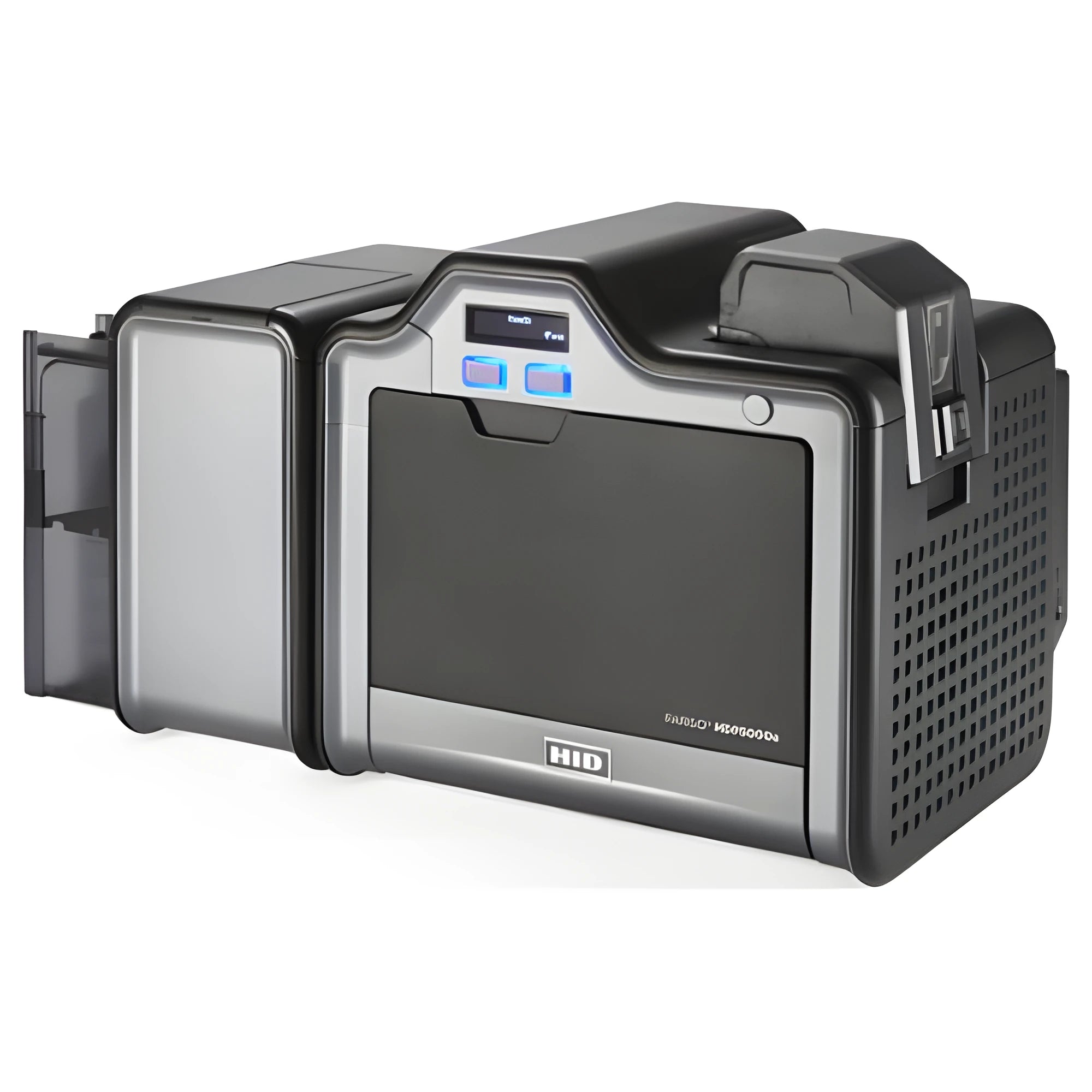

The HID FARGO HDP5000e Single-Sided ID Card Printer (Manufacturer Part Number: 096600) is an industrial-grade, high-definition retransfer printing solution engineered for medium-to-large corporations, universities, healthcare facilities, and government agencies. Built on seven generations of proven retransfer technology, the HDP5000e delivers exceptional reliability, usability, and security for producing high-quality credentials that are inherently resistant to tampering and counterfeiting.

Product Overview

The HDP5000e utilizes High Definition Printing (HDP) dye-sublimation and resin thermal transfer technology. Instead of printing directly onto the card surface, it prints a sharp, true-to-life color image onto an intermediate HDP film that is fused directly to the card surface. This process ensures seamless, over-the-edge coverage, making it ideal for cards with uneven surfaces, such as proximity cards and smart cards with embedded electronics. Powered by an advanced electronics platform with 1 GB of memory, this printer features standard USB 2.0 and Ethernet connectivity with an internal print server to manage high-volume issuance environments effortlessly.

Key Product Features

• High-Definition Retransfer Printing: Produces sharp, vibrant 300 dpi images. Because the printhead never comes into direct contact with the plastic card, it eliminates the risk of printhead damage on uneven smart card surfaces.
• Intuitive SmartScreen™ Interface: Features a high-definition graphical OLED display that streamlines operation by providing clear status notifications and step-by-step walkthrough prompts for setup, routine maintenance, and troubleshooting.
• Robust Data & Physical Security: Equipped with built-in AES-256 data encryption and password protection to safeguard personal information in transit. It also includes resin scramble data protection to ensure used ribbon panels cannot be read or reconstructed.
• Future-Ready Modular Architecture: The single-sided base configuration can be easily upgraded in the field as your organizational requirements grow. It supports add-on modules for dual-sided printing, single- or dual-sided lamination, dual-input card hoppers, and various smart card or magnetic stripe encoding technologies.
• Simplified Maintenance: Tool-free access to internal assemblies and cartridge-loaded ribbons, films, and integrated cleaning rollers allow for quick, snap-in replacement with minimal training.

What's in the Box

The standard base printer configuration (SKU 096600) ships with the following out-of-the-box components:

• HID FARGO HDP5000e Base Printer (Single-sided configuration)
• 100-Card Capacity Input Hopper
• 200-Card Capacity Output Hopper
• USB 2.0 Cable
• US / International Power Cords & Supply Tray
• Quick Start Guide
• Printer Drivers & Utilities Software
• (Note: This is the hardware-only base model package. Printing consumables, ribbons, and HDP transfer films must be purchased separately based on your specific security and card volume requirements).

Technical Specifications

• Print Method: HDP Dye-Sublimation / Resin Thermal Transfer
• Resolution: 300 dpi (11.8 dots/mm)
• Print Speed: Up to 27 seconds per card / 133 cards per hour (using YMCK ribbon with transfer); up to 178 cards per hour in YMC color.
• Accepted Card Size: CR-80 (3.375" L x 2.125" W / 85.6mm L x 54mm W)
• Accepted Card Thickness: 30 mil to 50 mil
• Accepted Card Types: ABS, Laminated PVC, PET, PETG, polycarbonate, proximity, and smart cards. (Note: ABS and PVC cards are not recommended if an optional lamination module is added).
• Input Capacity: 100 cards (upgradable to a 200-card input hopper)
• Output Capacity: 200 cards
• Connectivity: USB 2.0 and Ethernet with an internal print server
• System Drivers: Supported on Windows 10 (x32), Windows 11 (x64), and Windows Server 2016/2019/2022 (x64)
• Weight: 18.7 lbs. / 8.5 kg (base printer)
• Warranty: Global 4-year printer warranty and a lifetime warranty on the printhead (unlimited card passes).
