$5,397.95

• Guaranteed secure & safe checkout.



Description

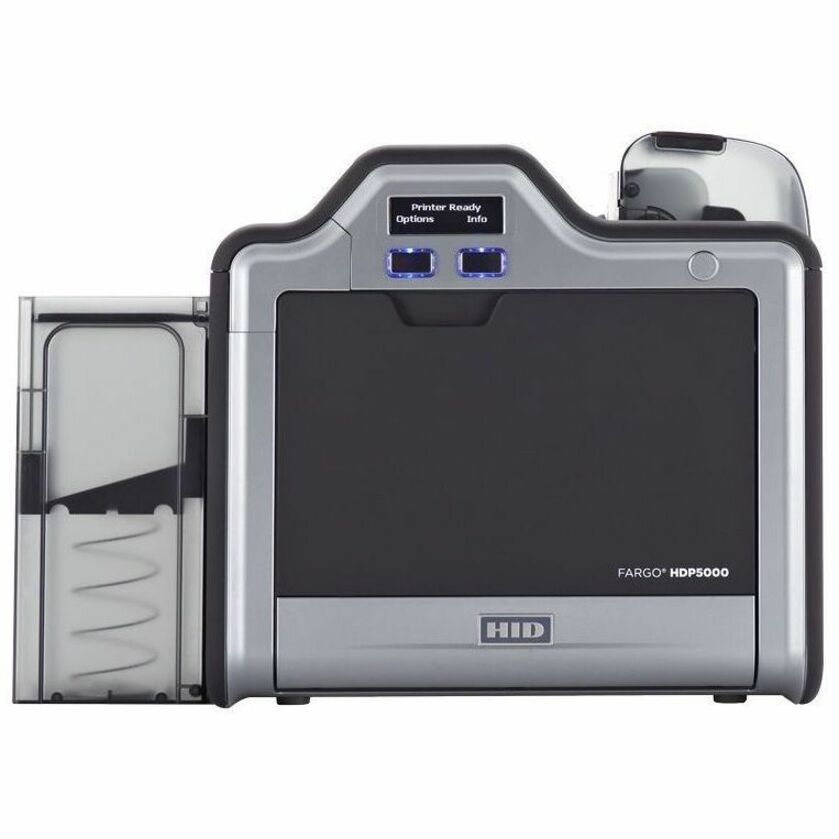

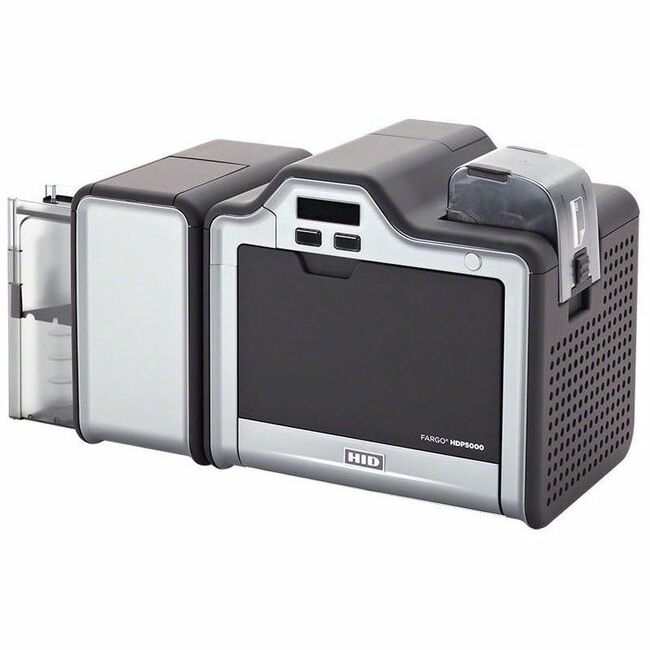

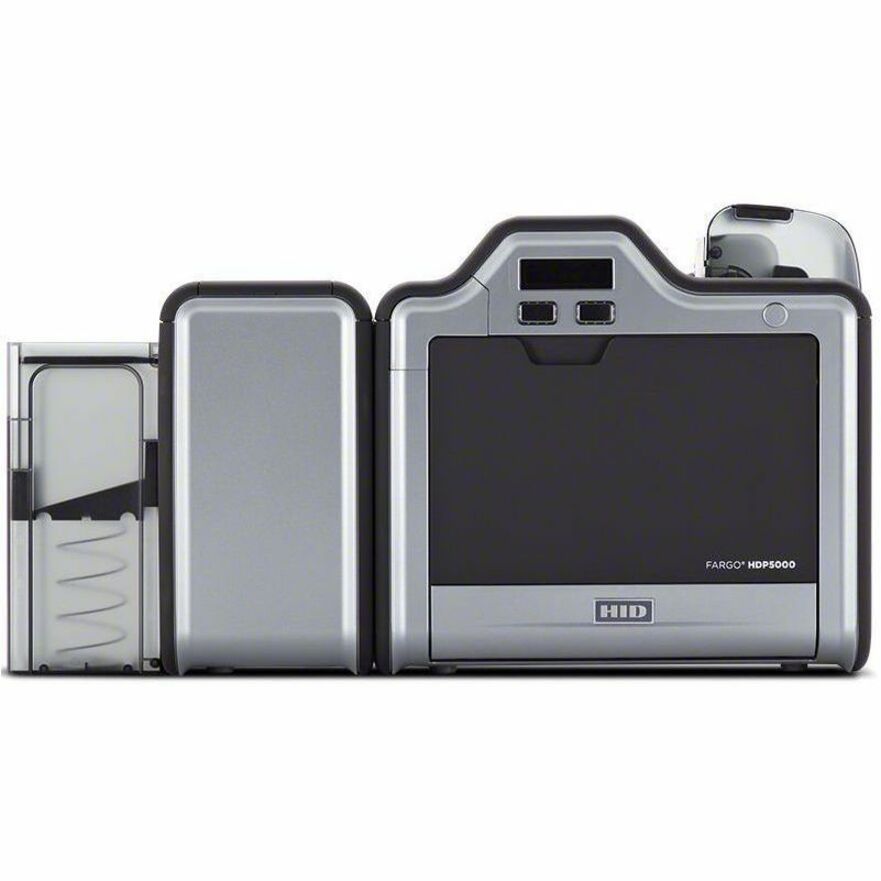

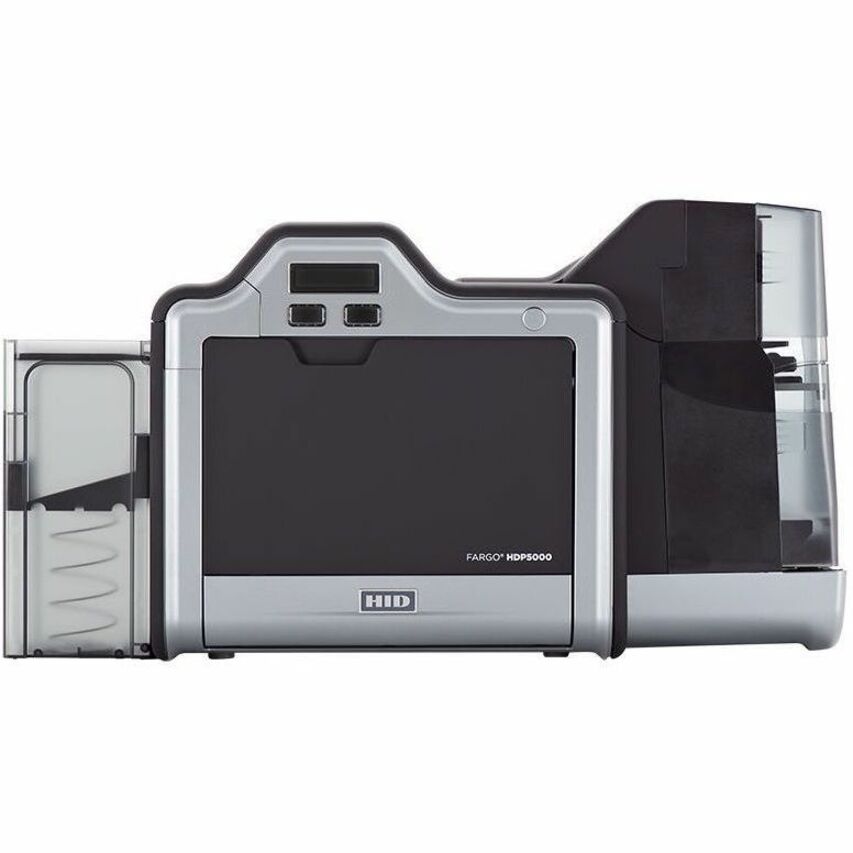

The HID Fargo HDP5000 Dual-Sided ID Card Printer is a heavy-duty, high-security desktop solution engineered to handle the strict volume and structural demands of government agencies, industrial facilities, universities, healthcare networks, and academic institutions. Powered by advanced High Definition Printing (HDP®) retransfer technology, this dual-sided powerhouse prints your design onto a clear retransfer film before thermally bonding it to the card. By bypassing traditional direct-to-card limitations, the HDP5000 delivers rich, saturated color profiles and true over-the-edge printing across diverse card substrates, including high-frequency proximity cards and smart cards with embedded chips or antennas.

Key Benefits

• Automated Duplex Production: Streamlines high-security badging operations by automatically printing vibrant graphics on the front of a card and crisp text or barcodes on the back in a single pass without manual card flipping.
• Flawless Over-the-Edge Vibrancy: High-definition retransfer printing ensures full-bleed color saturation covering the entire surface of the card, completely eliminating unprinted white margins.
• Smart Card Component Safety: The indirect reverse-transfer process ensures safe, uniform coverage over uneven card surfaces—such as embedded proximity chips, smart antennas, or contactless circuits—without risking thermal printhead damage.
• Tamper-Evident Durability: The fused clear HDP film layer acts as a rugged physical shield against daily abrasions, physical wear, and UV fading; if a counterfeiter attempts to peel the layers apart, the underlying image automatically destroys itself.
• Operator-Friendly SmartScreen™ Interface: Features an easy-to-understand SmartScreen graphical LCD control panel that provides real-time status messages, diagnostic alerts, and step-by-step troubleshooting prompts.

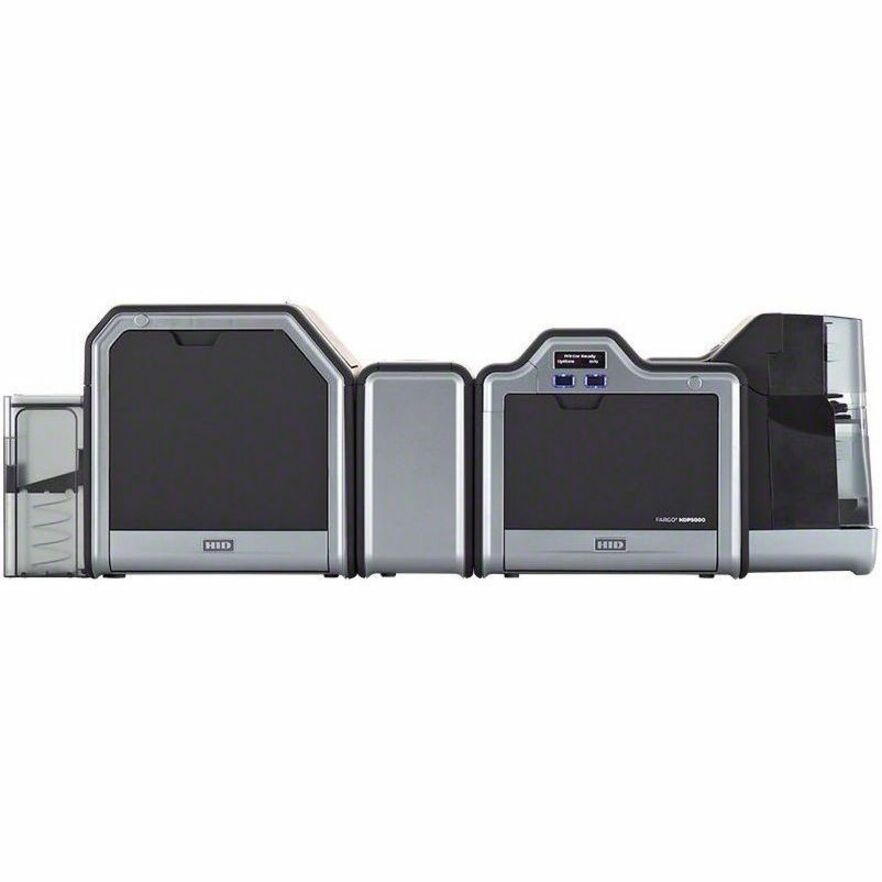

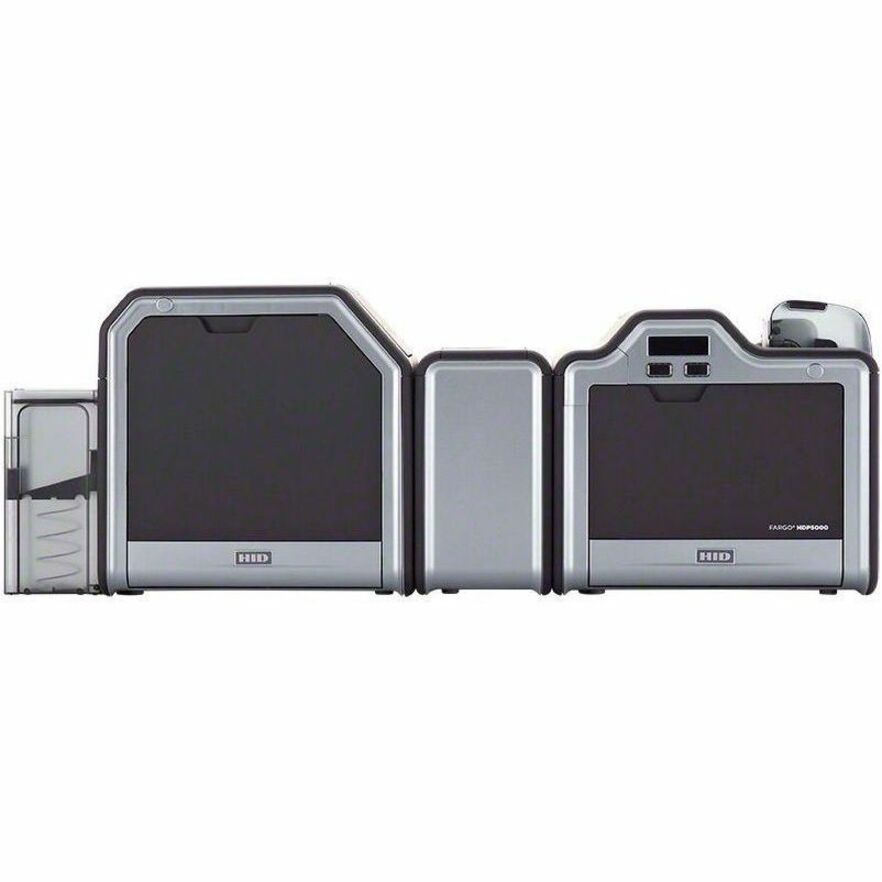

• Flexible Modular Scalability: Built with a versatile, future-proof architectural framework that can be field-upgraded at any time with specialized magnetic stripe encoders, smart card programmers, or dual-sided inline lamination modules.

Technical Specifications

• Print Technology: High Definition Printing (HDP) Retransfer / Dye-Sublimation [HDP5000 Manual]
• Print Resolution: 300 dpi (11.8 dots/mm) continuous tone [HDP5000 Manual]
• Print Capability: Automatic Double-Sided (Duplex) and single-sided edge-to-edge printing [HDP5000 Manual]
• Print Speeds: Fast batch processing capable of printing up to 133 single-sided cards per hour (YMCK) or 75 dual-sided cards per hour (YMCK-K) [HDP5000 Manual]
• Card Capacity Profile: 100-card input hopper; 200-card output hopper capacity [HDP5000 Manual]
• Accepted Standard Card Sizes: Standard ISO CR-80 card substrates (3.375" L x 2.125" W) [HDP5000 Manual]
• Accepted Card Thickness: Accepts specialized technology, proximity, and composite cards from 30 mil to 50 mil [HDP5000 Manual]
• Wired Connectivity: High-Speed USB 2.0 interface standard (with optional Ethernet connectivity configurations available) [HDP5000 Manual]
• Cross-Platform Compatibility: Fully optimized for Windows PC desktop deployment [HDP5000 Manual]
• Manufacturer Warranty: 3-year manufacturer warranty with a lifetime printhead warranty coverage [HDP5000 Manual]
• SKU / Model Identifiers: SRX96526

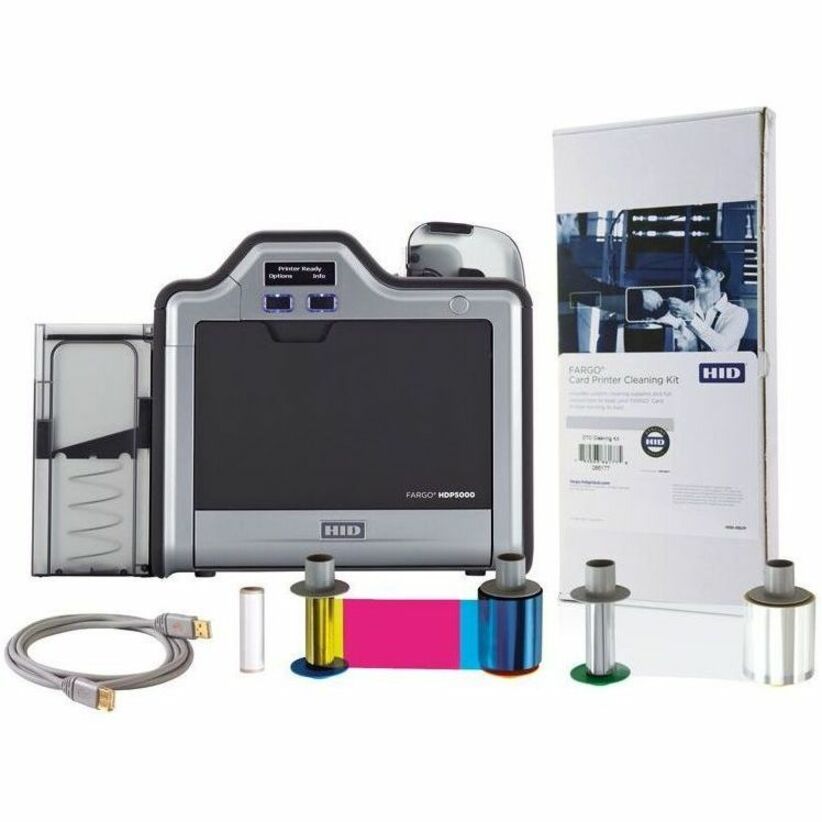

Compatible Genuine HID Fargo HDP5000 Consumables

To maintain elite card print accuracy and guarantee full hardware durability, use only certified genuine HID Fargo consumables:

• 84051: YMCK Full-Color Ribbon with Resin Black Panel (500 prints/roll)
• 84052: YMCKK Dual-Sided Full-Color Front / Monochrome Black Back Ribbon (500 prints/roll)
• 84053: Clear HDP Retransfer Film Canvas (1,500 single-sided prints/roll or 750 dual-sided cards/roll)
• 84056: YMCKH Full-Color Ribbon with Specialized Heat Seal Panel for smart cards (500 prints/roll)
• 89200: Complete HDP Printer Cleaning Kit (Includes adhesive cards, alcohol rollers, gauze pads, and printhead cleaning swabs)

In the Box

• HID Fargo HDP5000 Dual-Sided ID Card Printer
• 100-Card Capacity Input Hopper
• 200-Card Capacity Output Hopper
• High-Speed USB 2.0 Cable
• Power Supply and US/International Power Cords
• Printer Driver CD / Documentation Installation Guide
